PRODUCT DETAILS

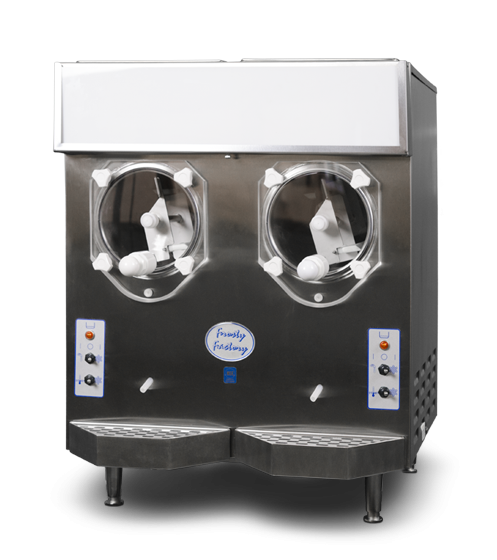

Model # 215R

Features

Double Cylinder - Serves Two Flavors
(2) 2 Gallon Cylinders - (2) 3 Gallon Hoppers
High Production - 155 Ten Ounce Drinks per Hour per Side
Remote Refrigeration - Keeps Noise and Heat Away from Serving area
Stand-by-Switch - Refrigerates Mix Overnight
Lighted Flavor Sign - Draws Attention to Product

Specifications (Download Spec Sheet)

• Height: 28 1/2 in (62cm)
• Width: 22 1/2 in (57 cm)
• Depth: 21 in (53 cm)
• Weight: 175 lbs (79 kg)
• Legs: 4 in (10 cm)
• Shipping Size:
•      27"W X 27"D X 32"H
•      69 cm W X 69 cm D X 81 cm H
• Shipping Volume: 13 cu ft (1/3 cu M)
• Shipping Weight: 185 lbs (84 kg)
• Voltage: 115 - Optional 230
• Hertz: 60 - Optional 50
• Phase: 1
• Cooling: Remote
• Clearance:
•      Sides: None Required
•      Rear: 6 in
• Hopper Capacity: 12 qts (11 1/4 ltr)
• Cylinder Capacity: 7 qts (6 1/2 ltr)
• Amperage Draw: 15 amps
• Circuit Breaker: 20 amp
• Plug Configuration: 125v, 20 amp, NEMA 5-20
• Condensing Unit: (Download Spec Sheet)
• Refrigerant: 404A

Remote Options:

Model # 215R 1-1 (1 Dispenser to 1 Condenser)

Model # 215R 2-1 (2 Dispensers to 1 Condenser)

(Download Service Manual)

(Download "Will Serve" Chart)

(Download Warranty)
